OLT GPON SU16G
OLT GPON SU16G - Image 2
OLT GPON SU16G - Image 3

OLT GPON SU16G

OLT GPON SU16G

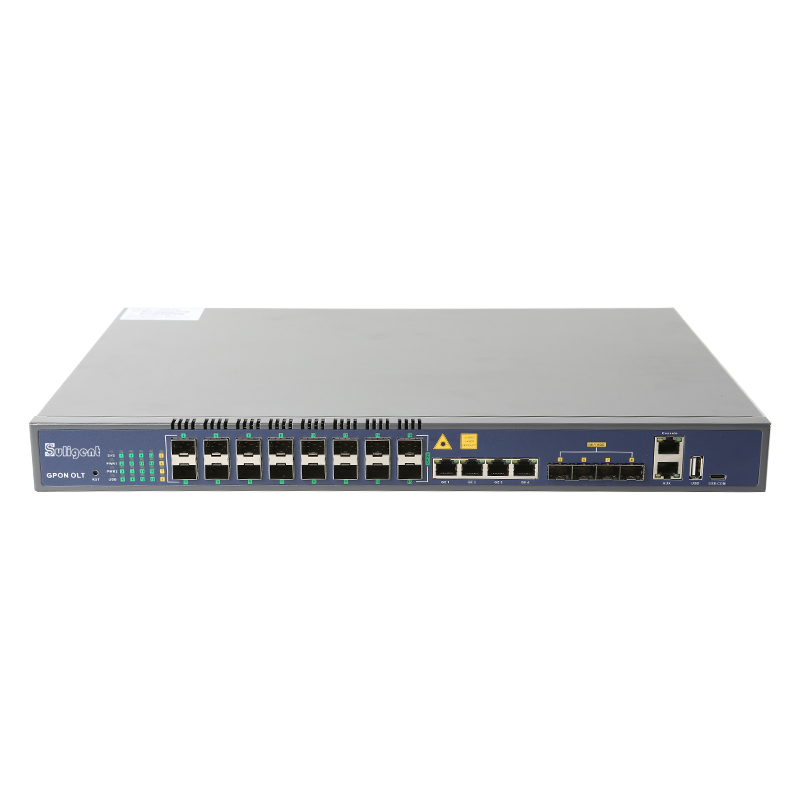

OLT GPON SU16G which provides 16 GPON ports, 4 GE copper RJ45 ethernet ports, 4 SFP+(10GE) optical uplink ports

it has high reliability, highly dense broadband access and robust switching and routing abilities, is a new generation of broadband and multiservice access OLT devices oriented towards the service-integrated network.

SU16G OLT integrates with network security, supports data, voice and video, and provides continuous forwarding, graceful restarting and ring protection, improving the work efficiency and securing the maximum running time.

Independent 1U chassis device, with 16 PON ports, supports 128 ONU per port, and 2,048 ONU for the entire device. Small size, high density, easy to install, convenient, flexible and easy to deploy high-performance broadband access network.

Category: Tag:

OLT GPON SU16G



OLT GPON SU16G

Items Specifications
PON standard GPON ITU-T G.984.x, G.988
PON interface 16 GPON port SFP (C +), receiving sensitivity: -30dBm (saturated light power-12dBm). Power: Emitted light power: + 3~ + 7dBm

Transmission distance: 20km. Maximum spectroscopic ratio of 1:128

Uplink rate: 2.488G, Downlink rate: 1.244G
Wavelength Tx1310nm, Rx 1490nm
Uplink 4*GE 、4 * 10GE（SFP +）
Layer 3 Support for static routing, dynamic routing RIP v1 / v2, OSFP v2, ARP agent
Management Ports 1*10/100BASE-T out-band port, 1*CONSOLE port
Management Mode SNMP、Telnet、CLI、WEB、SSH v1/v2
MAC table 32K
Operating condition -5 ~ +55℃
Storing condition -40 ~ +85℃
Humidity 5~90%(non-condensing)

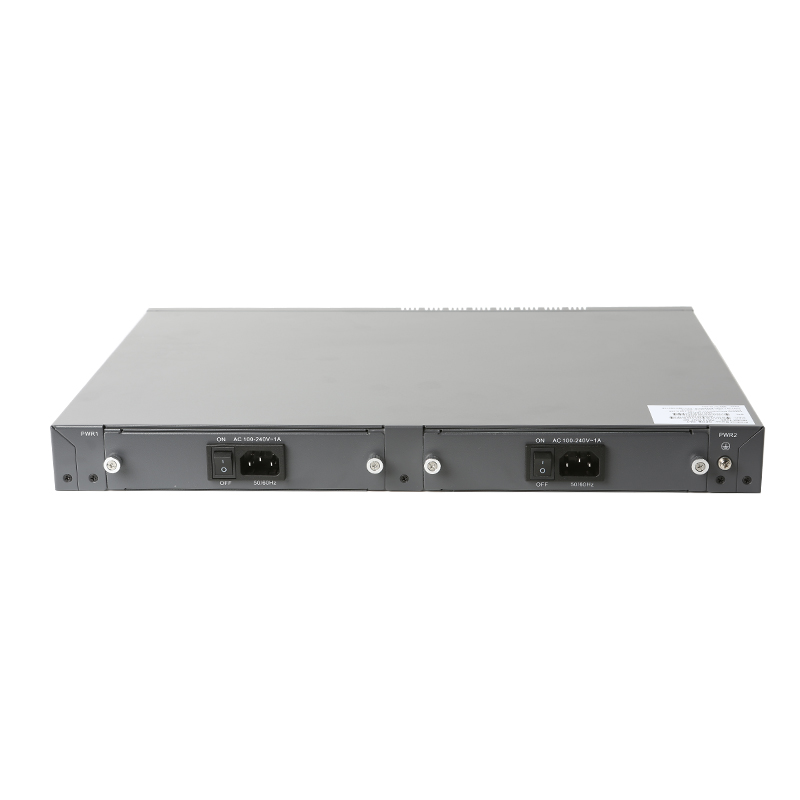

Power AC100～240V, 47/63Hz
Power consumption ≤85W
Dimension 442mm×320mm×44mm（L×W×H）
Net weight 4.5Kg

Feature



  • 16PON port 1U 19-inch standard chassis GPON OLT
  • Comply with ITU-T G984 / G.988 standard and China Telecom GPON technical requirements
  • Supports EMS / Web / Telnet / CLI / SSH v1 / v2 management
  • Support for remote online ONT configuration and management (WAN, WiFi, POTS, etc.);
  • 32K Mac Address
  • Supports IPv6, IPv4
  • Support ARP agent, 4096 host routing, 4096 subnetwork routing;
  • Support for MLD v1 / v2 snooping (Multicast Listener Discovery snooping);
  • Support for 802.1X, Radius, and Tacacs +;
  • Support for 4,096 VLAN, port VLAN, and protocol VLAN;
  • Support for VLAN tag / Un-tag, VLAN transparency, and QinQ transmission;
  • Support for port isolation;
  • Support the port speed limit;支持1D和802.1W；
  • Support for static LACP, dynamic LACP;
  • QoS based on the port, VID, TOS, and MAC addresses;
  • Access Control List;
  • x flow control;
  • Port stability statistics and monitoring;
  • Support for IGMP Snooping, 256 IP multicast groups
  • DHCP server, DHCP relay, DHCP Snooping, DHCP option82;
  • Support for data encryption, multicast, port VLAN, separation, RSTP, etc
  • Support ONT automatic discovery, automatic configuration / link detection / software remote upgrade;
  • Support the power-off alarm function to facilitate the link problem detection;
  • Support the broadcast and storm prevention function;
  • Support for ACL and SNMP flexible configuration of packet filtering;
  • Professional system fault prevention design to keep the system stability;
  • Support for RSTP, IGMP agent;
  • Support for dynamic bandwidth allocation (DBA)
  • Support for remote software upgrades to download firmware to OLT from web / tftp / ftp
